T-Rex 50kW HP
T-Rex 50kW HP
Felicity solar
T-REX-50KHP3G01
Overview › RS485

RS485/COM port

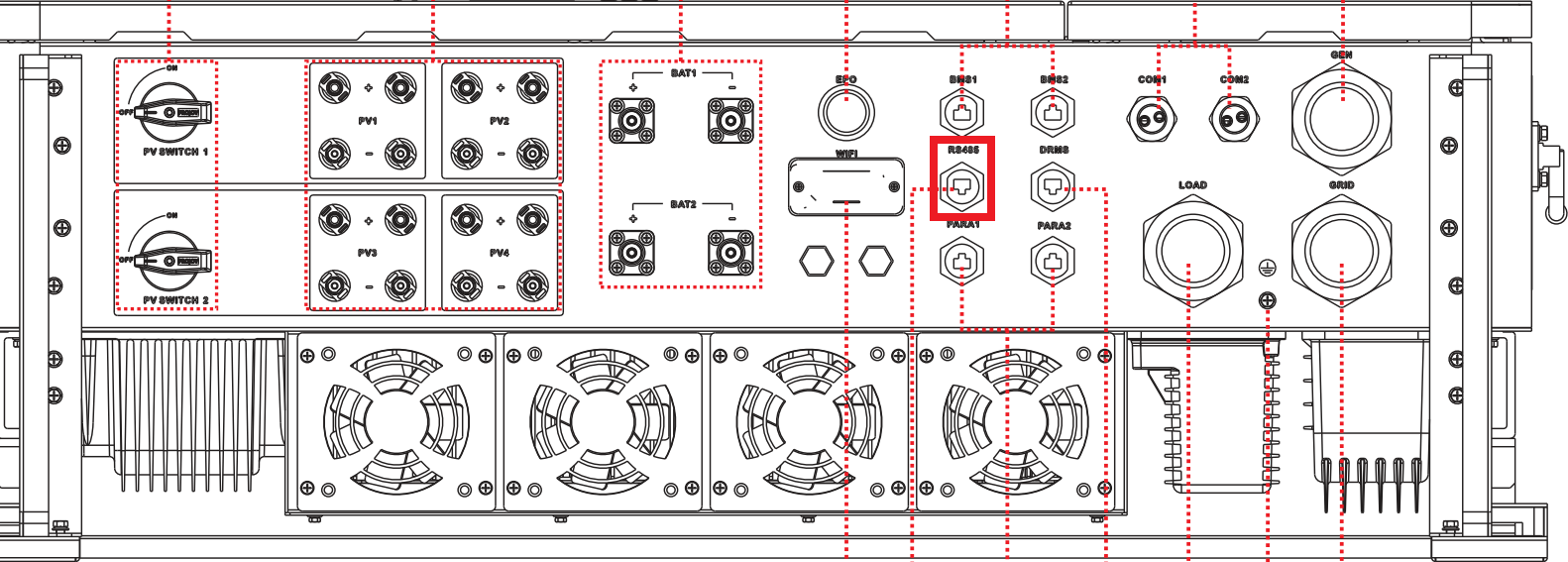

Use an RS485 cable cable plugged into the inverter port labelled "RS485" which is located at the bottom of the inverter.

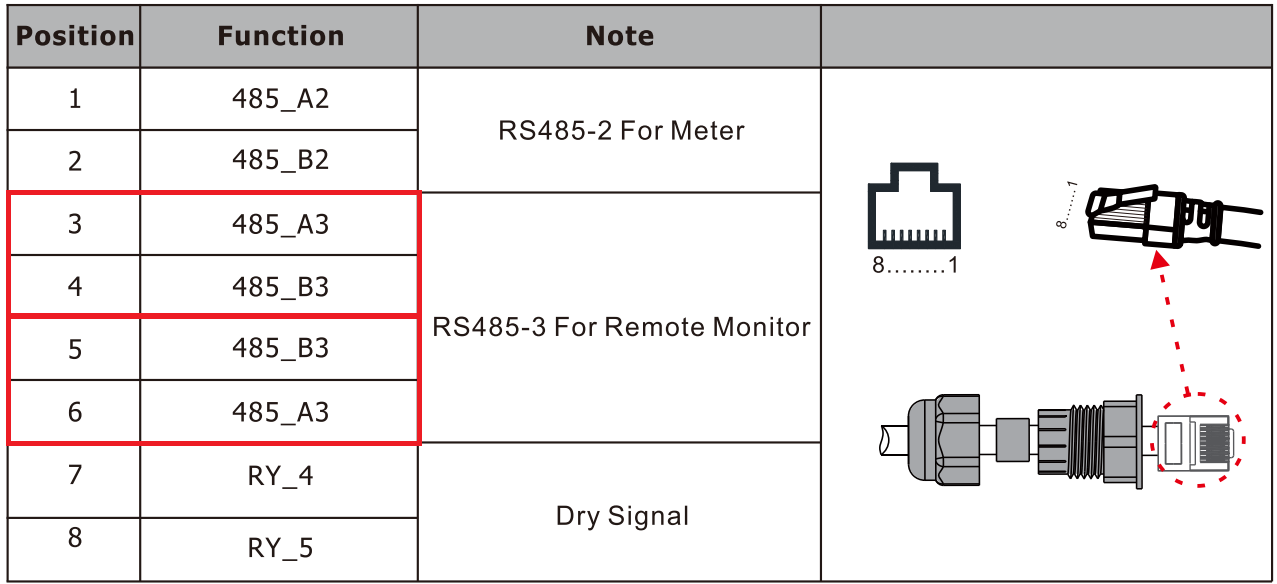

Felicity T-Rex RS485 portFelicity T-Rex RS485 pins

Steps in SolarAssistant

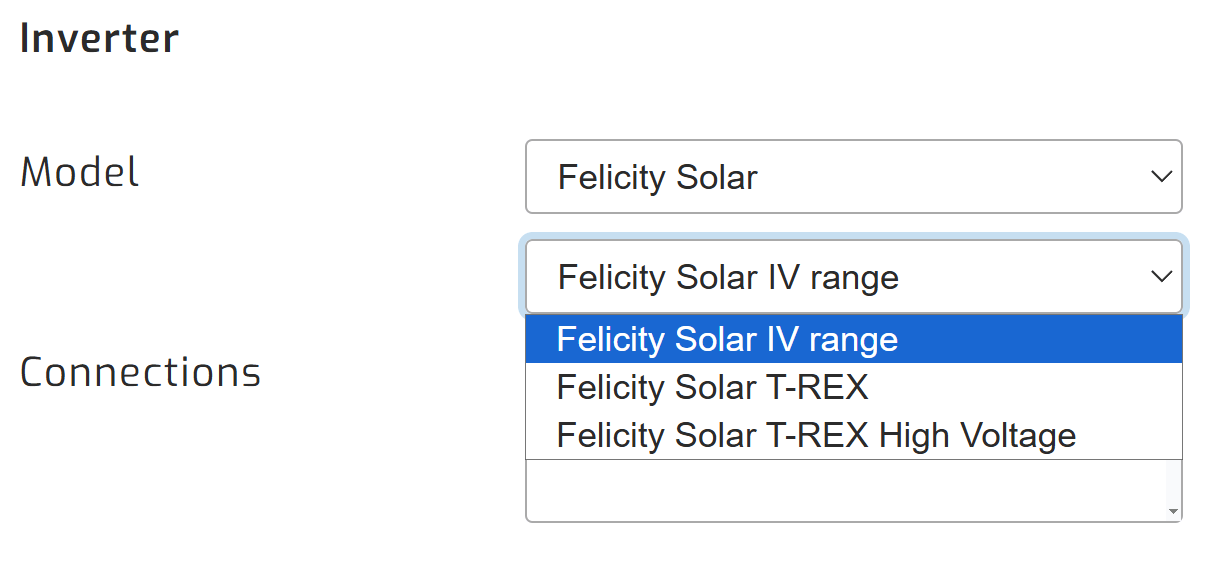

On the configuration page, select "Felicity Solar T-Rex" as your inverter model.

SolarAssistant felicity inverter selection

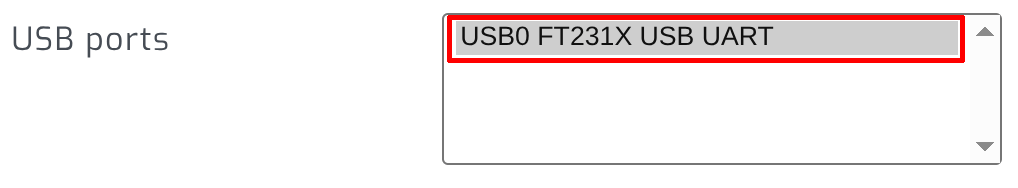

Select the USB port(s) where you have Felicity Solar inverters connected.

Select felicity USB ports

Click connect:

Select connect

Parallel installations

With Felicity Solar inverters you will need to connect each inverter with its own cable.
