Inverters › MidNite Solar › 15kW All-In-One
15kW All-In-One
15kW All-In-One
MidNite Solar
MN15-12KW-AIO
Overview › RS485

RS485 port

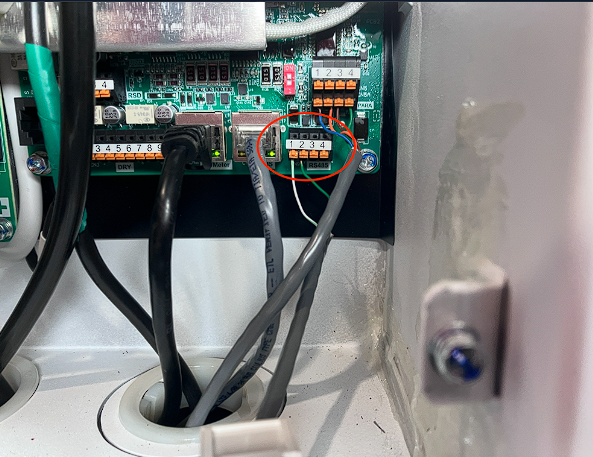

When it comes to these inverters, you will need an Self-crimp RS485 cable using the RJ45 pin configuration below:

midnite RS485 Pins

If you buy any random USB RS485 RJ45 cable on Amazon, Ebay, Takealot, etc. which doesn't specifically state that it supports the inverter, it will most likely not work.

Steps in SolarAssistant

On the configuration page, select "Senergy" as your inverter model.

senergy inverter selection

Select the USB port(s) where you have inverters connected. There will typically be one option.

Select USB devices

Click connect:

Select connect

Parallel installations

With these inverters you will need to connect each inverter with its own cable.
