Inverters › Salvare › 10 PRO
10 PRO
10 PRO
Salvare
SE 10KHB-210-T/EU
Overview › RS485

RS485 port

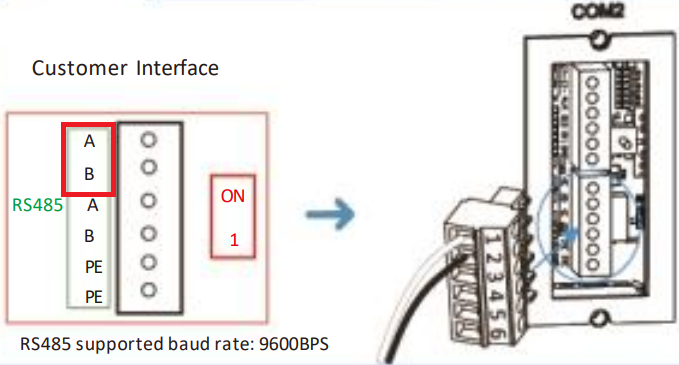

When it comes to these inverters, you will need an Self-crimp RS485 cable using the RJ45 pin configuration below:

Senergy RS485 Pins

If you buy any random USB RS485 RJ45 cable on Amazon, Ebay, Takealot, etc. which doesn't specifically state that it supports the inverter, it will most likely not work.

Steps in SolarAssistant

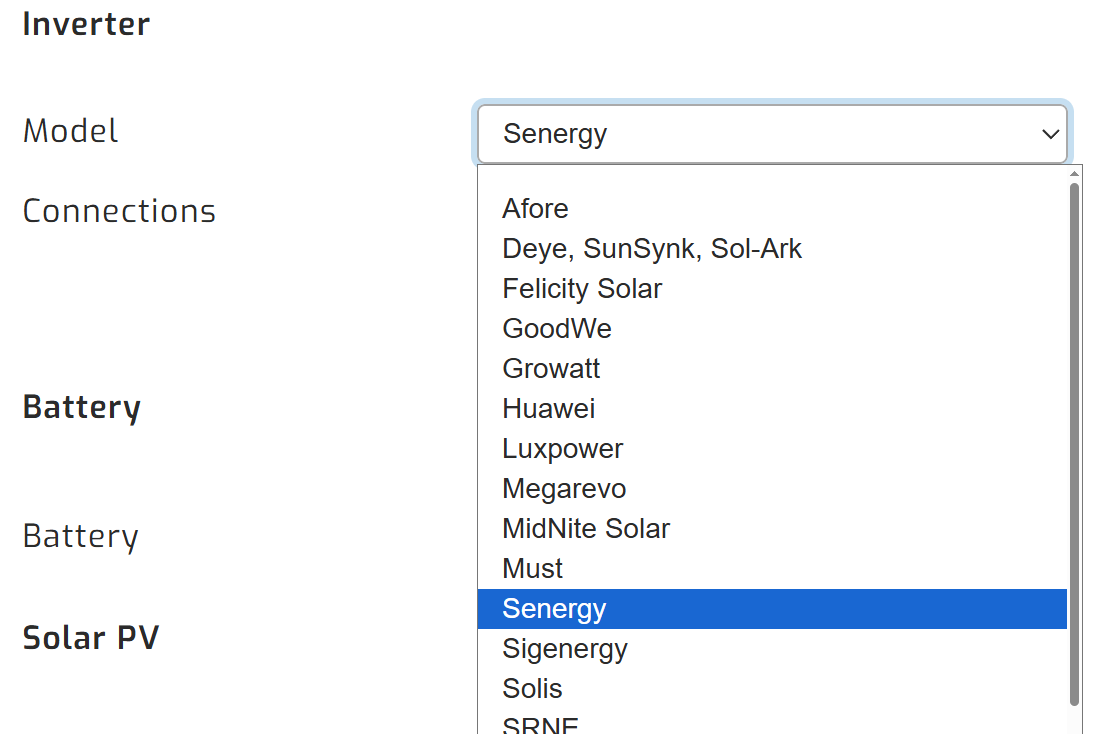

On the configuration page, select "Senergy" as your inverter model.

senergy inverter selection

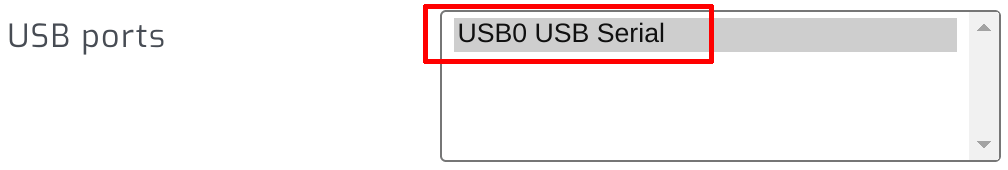

Select the USB port(s) where you have inverters connected. There will typically be one option.

Select USB devices

Click connect:

Select connect

Parallel installations

With these inverters you will need to connect each inverter with its own cable.

Troubleshooting

If you have any issue, please try the official Senergy application from a laptop. If it works with these official applications, then it should work with SolarAssistant.
