11.4kW 48V Split-Phase Hybrid
11.4kW 48V Split-Phase Hybrid
SunGoldPower
SGN11.4KHB-48
Overview › RS485

RS485 port

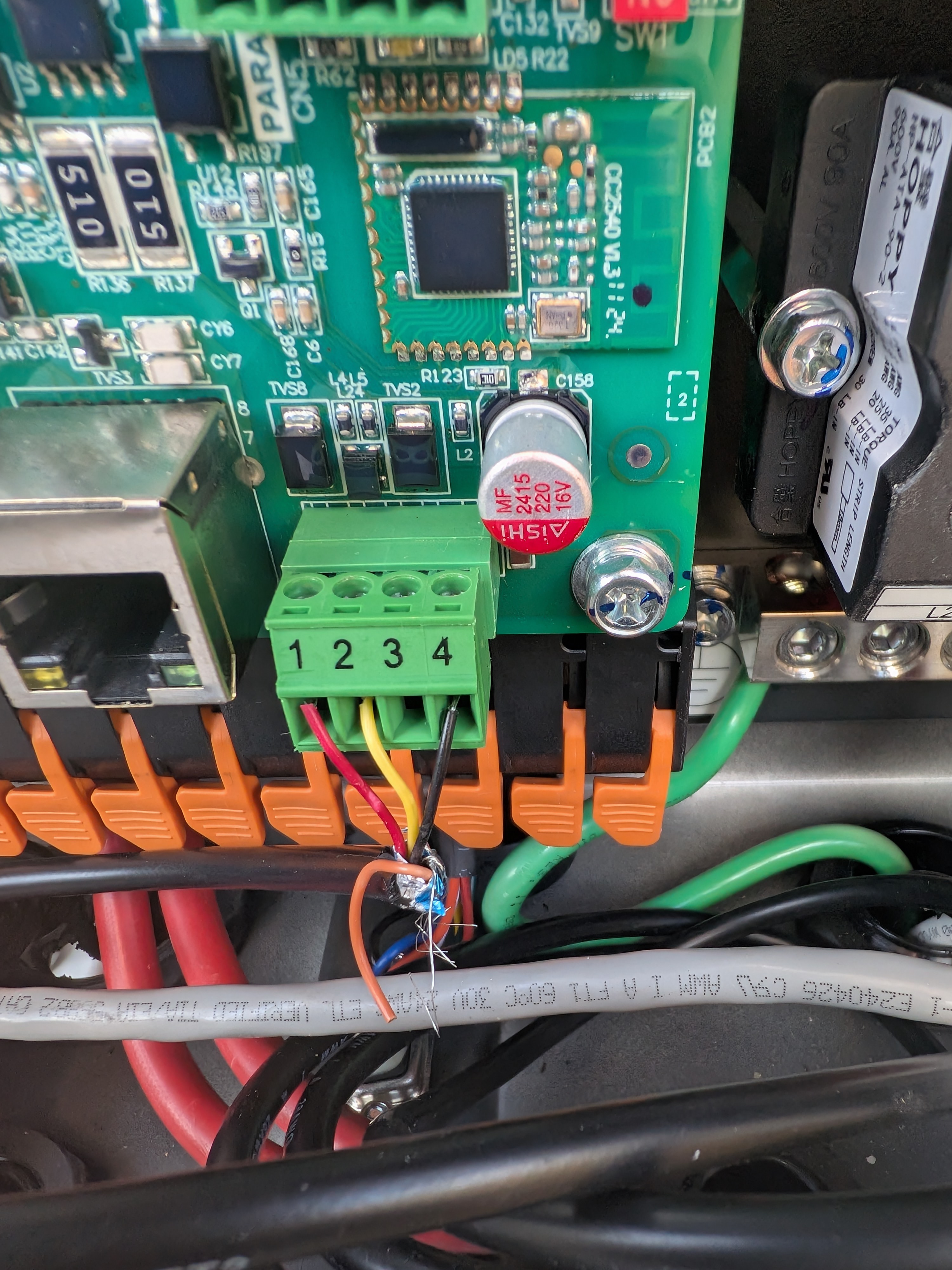

To connect to these units, you will need a Self-crimp RS485 cable using configuration below:

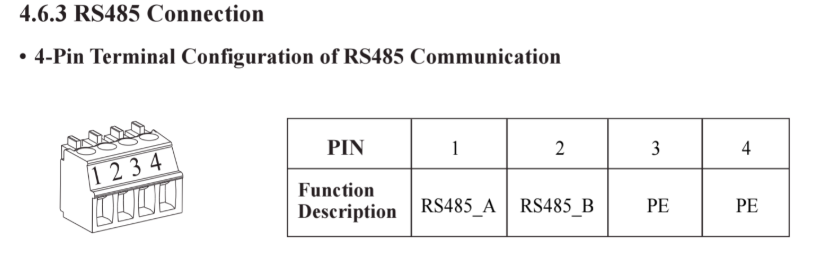

SGN RS485 Pins

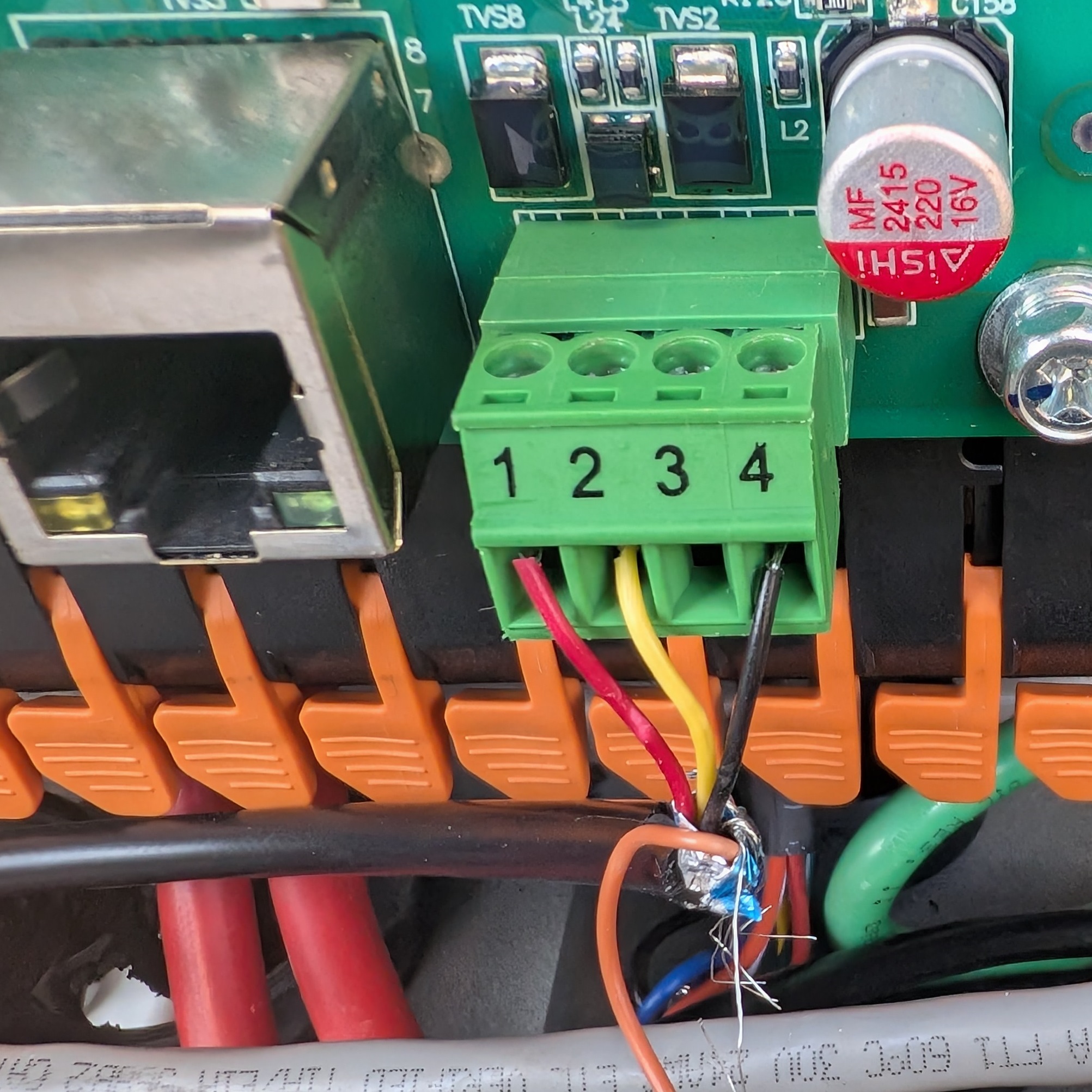

SGN RS485 Pins

If you buy any random USB RS485 RJ45 cable on Amazon, Ebay, Takealot, etc. which doesn't specifically state that it supports the inverter, it should still work if it is an RS485 cable but we make no guarentees.

Steps in SolarAssistant

On the configuration page, select "Senergy" as your inverter model.

senergy inverter selection

Select the USB port(s) where you have inverters connected. There will typically be one option.

Select USB devices

Click connect:

Select connect

Parallel installations

With these inverters you will need to connect each inverter with its own cable.

Troubleshooting

If you have any issue, please try the official application wireless monitoring software. If it works with these official applications, that confirms the unit is communicating as expected. You can also test the RS485 cable output to a PC/Laptop to see if there is data being sent over the cable.
